GEPCO RUN ONE PA2 (2-Digital Audio/DMX Lines & 1-Power Line 14 Ga)Custom cable assemblies by Conquest Sound

GEPCO wire

$112.00

← Continue Shopping

Please direct any questions about the products we carry to sales@sodaaudio.com. We are happy to help.



Conquest/Gepco RunOne powered speaker cables combine audio and power along with optional Cat5e data under on heavy duty, yet flexible jacket.

Perfect for powered speakers, lighting rigs, digital
consoles and more. The RunOne provides a portable
and neat solution. Each cable combines 14 gauge
power (12 gauge in touring version) with two, eight
or twelve channels of 110 oHm balanced audio for line
level, mic level or digital AES signals. RunOne can also
be used with self powered speakers or in DMX lighting
control.

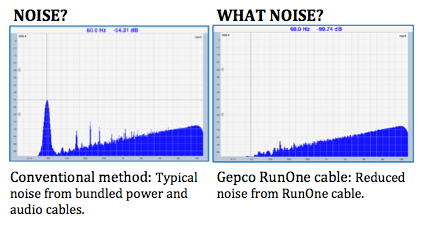

NOISE?

Additional configurations include the same features as the base RunOne plus two channels of Cat 5e cable that can be used for data drops in remote power and audio applications. Can also be used in digital audio transmission while running power to remote loca- tions.

60Hz Hum Eliminated Conventional method: Typical

WHAT NOISE?

Gepco RunOne cable: Reduced noise from RunOne cable.

The RunOne cables eliminate the annoying 60Hz hum contained in competitive styles on the market. This is done via a specially designed shielding around the power line - see the chart on this page.

noise from bundled power and audio cables.

AUDIO

*Precision 110 Impedance *Extremely durable and

flexible
*Low density Polyethylene

insulation
*Stabilizing Polyethylene Rod

POWER

*Specialized electrical-only design

*Reduces interference and EMI

*Shielded design with tinned copper drain wire

CONFIGURATIONS

PA2 - 2 Digital Audio/DMX Lines & 1 -14ga Power Line
PA8 - 8 Digital Audio/DMX Lines & 1 -14ga Power Line
PA12 - 12 Digital Audio/DMX Lines & 1 - 14ga Power Line
PA2C - 2 Digital Audio/DMX Lines, 2 Cat5e & 1 -14ga Power Line PA12C - 12 Digital Audio/DMX Lines, 2 Cat5e & 1 -14ga Power Line

PA2T - 2 Digital Audio/DMX Lines & 1 -12ga Power Line

RunOne bulk wire available in all configurations. Call for pricing and details.

AVAILABLE STYLES - 2, 8 & 12 CHANNELS

XLRF/XLRM. EDISON MALE, POWER CON BLUE XLRF/XLRM. EDISON MALE, IEC FEMALE
XLRF/XLRM. EDISON FEMALE TO EDISON MALE
XLR F/M TO XLR M/F. EDISON M TO POWERCON BLUE XLR F/M TO XLR M/F. EDISON MALE TO IEC FEMALE

*All XLRs are Neutrik NC series

Optional connectors include:

Switchcraft XLRs TRS Males
5 Pin Neutrik XLRs Black/Gold Neutrik XLRs Neutrik Ethercon

XLRF, XLRM TO XLRM, XLRF. EDISON F TO EDISON M XLRF/XLRM. POWERCON BLUE TO POWERCON GREY XLRF/XLRM. POWERCON GREY TO IEC FEMALE
XLR F/M TO XLR M/F. POWERCON GREY/ POWERCON BLUE XLR F/M TO XLR M/F. POWERCON GREY TO IEC F

Lengths Available:

10’, 15’, 20’, 25’, 30’, 40’, 50’, 75’, 100’, 125’, 150’, 200’

PAC configurations available up to 330’
